Ketron® PEEK GF30

beje

Reinforced with 30% fiberglass offers greater rigidity and creep resistance than Ketron PEEK 1000® and has much better dimensional stability. Ketron Peek GF30® is very suitable for structural applications that carry high static charges for long periods of time at high temperatures. The application of the Ketron GF30 PEEK® to sliding parts, however, should be carefully examined, since the glass fibers tend to wear out the contact surface.

Set up your product


Format

Chemical

Resistance

Electrical

Insulation

Wear

resistance

sliding

properties

impact

resistance

+250ºC / -20ºC

temperature range

MAIN CHARACTERISTICS

- High maximum service air temperature (250 ° C continuous and 310 ° C for short periods)

- High mechanical strength, stiffness and creep resistance, even at high temperatures

- Excellent resistance to chemicals and hydrolysis

- Excellent wear and frictional behavior

- Very good dimensional stability

- Excellent resistance to high energy radiation (gamma rays and X-rays)

- Good PTFE replacement when mechanical load capacity is greater or when superior wear resistance is required

ApPLICATIONS

- Metal components

- Pump Components

- Valve seats

- Bearings

- Rollers

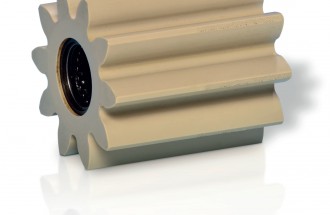

- Gears

- High temperature insulators

- Components exposed to boiling water or steam

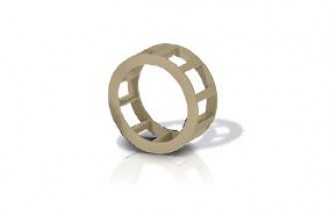

- Bearing cages

Downloads

Ketron® Peek GF30 - Technical Datasheet

Ketron® Peek GF30 - Delivery Program
